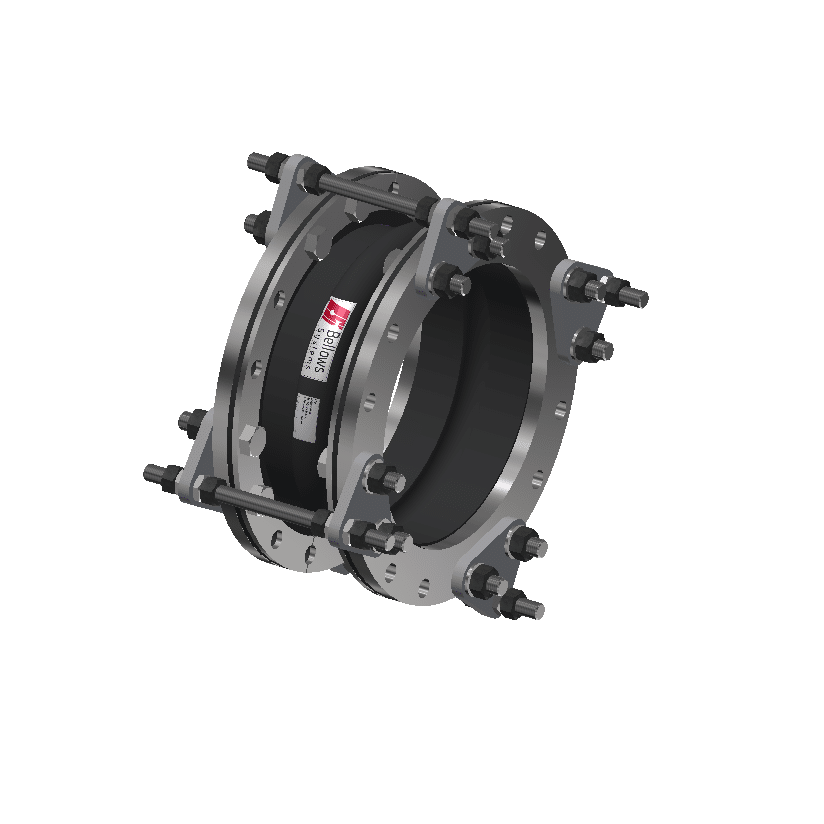

Single Arch Rubber Expansion Joint with Retaining Rings & Control Rods (18”)

✔ In Stock

Part Number: 600-008-0118-11

The 18” Single Arch Expansion Joint with control rods is designed for controlled flexibility and enhanced operational safety. It combines vibration isolation with mechanical restraint, making it suitable for critical pipeline systems.

Product Enquiry

Product Overview

Part Number: 600-008-0118-11

The 18” Single Arch Expansion Joint with control rods is designed for controlled flexibility and enhanced operational safety. It combines vibration isolation with mechanical restraint, making it suitable for critical pipeline systems.



Technical Specifications

  • Size: 18”
  • Overall Length: 8”
  • Accessories: Retaining rings + control rods
  • Design: Single arch

DESIGN CONDITIONS

  • Rated Pressure: 150 PSIG
  • Rated Temperature: Max. 250 °F

MOVEMENTS AT DESIGN PRESSURE

  • Rated Axial (Compression): 1.496 IN
  • Rated Axial (Extension): 0.75 IN
  • Rated Lateral: 1 IN

Applications

  • Power generation plants
  • Petrochemical processing
  • Heavy industrial piping
  • Steam and condensate systems

Key Features

  • Dual protection: flexibility + movement control
  • Control rods prevent over-extension
  • Retaining rings improve sealing and durability
  • High fatigue resistance under cyclic loads
