Managing Thermal Expansion in Oil & Gas Pipelines: Custom Expansion Joint Solutions

Thermal expansion in pipelines is a critical issue faced by the Oil & Gas industry. Pipelines frequently undergo temperature fluctuations, causing significant stress and potential operational hazards. At Bellows Systems, Inc., as a leading custom-engineered bellows manufacturer in Houston, Texas, US, we specialize in addressing precisely these challenges.

Understanding the Challenge

Why is Thermal Expansion a Critical Issue?

In Oil & Gas pipelines, temperature variations cause pipelines to expand and contract, creating stress that leads to potential leaks, equipment failure, and costly downtime. Unmanaged thermal expansion can compromise safety, environmental compliance, and operational efficiency.

Common Problems Caused by Unmanaged Thermal Expansion

  • Pipeline cracking and leaks
  • Equipment and anchor damage
  • Environmental and safety hazards

Real-world Consequences

Imagine an offshore pipeline failure due to unmanaged thermal expansion: this could result in massive revenue loss, environmental damage, safety risks, and extensive repair costs.

Why Traditional Solutions Fail

Common Mistakes in Managing Pipeline Expansion

  • Overuse of rigid supports, preventing needed flexibility
  • Choosing incorrect or substandard materials
  • Underestimating the extent of thermal movements

Why Generic Expansion Joints May Not Be Enough

Generic expansion joints might fail due to incompatibility with extreme pressures, temperatures, and corrosive conditions typical of Oil & Gas applications.

  • Overuse of rigid supports, preventing needed flexibility
  • Choosing incorrect or substandard materials
  • Underestimating the extent of thermal movements

The Custom Engineered Solution – Metal Expansion Joints

Introduction to Metal Expansion Joints

Metal expansion joints are specially designed components that absorb thermal movement and reduce pipeline stress. They ensure structural integrity and continuous operational reliability.

Types of Expansion Joints Ideal for Oil & Gas

Material Selection for Oil & Gas Conditions

Selecting the right material is crucial for long-term pipeline reliability:

  • Austenitic Stainless Steels (316/316L, 321): Provides corrosion resistance, strength, and durability.
  • Nickel Alloys (Inconel, Monel): Ideal for extreme temperature resistance, corrosion protection, and structural stability under severe conditions.

Bellows Systems' Custom Engineering Advantage

Tailored Solutions for Oil & Gas Pipelines

At Bellows Systems, Inc., each expansion joint solution is engineered specifically for your pipeline’s operating environment, ensuring precise performance and long-term reliability.

Advanced Engineering and Material Selection

Our engineering team conducts thorough analysis of pipeline operating conditions, choosing the optimal material and joint design to withstand extreme pressures and temperatures.

Rigorous Testing and Compliance Standards

All Bellows Systems expansion joints comply with industry standards (ASME, AWS) and undergo rigorous testing, ensuring exceptional quality and performance.

Case Study Spotlight

We recently custom-engineered high-pressure balanced expansion joints for an offshore Oil & Gas client. The solution effectively managed extreme thermal fluctuations, significantly reducing downtime and maintenance costs.

Benefits of Custom Expansion Joints for Oil & Gas Pipelines

  • Reduced risk of pipeline stress and failures
  • Improved safety and regulatory compliance
  • Lower maintenance and downtime costs
  • Enhanced operational efficiency and system longevity

Frequently Asked Questions

Consider factors like pressure, temperature, fluid type, and movement magnitude. Our experts guide you through a detailed analysis to select the right joint.

Absolutely. Our customized joints are specifically engineered to handle high pressures, temperatures, and corrosive environments typical of the Oil & Gas industry.

Regular visual inspections and periodic pressure tests are recommended. Properly engineered joints from Bellows Systems generally require minimal maintenance.

Why Choose Bellows Systems, Inc.

Decades of Industry Expertise

With over 45 years of specialization, Bellows Systems, Inc. is trusted across the Oil & Gas industry.

Houston-based Custom Manufacturing

Our Houston, Texas facility ensures rapid response, personalized service, and localized expertise.

Industry-proven Solutions

Our solutions consistently outperform standard products in rigorous Oil & Gas applications.

Ready to Solve Your Thermal Expansion Challenges?

Talk to Our Bellows Engineering Specialists Today!

Don’t wait for a pipeline issue to become critical. Contact Bellows Systems, Inc.—your trusted custom-engineered bellows manufacturer in Houston, Texas, US—and experience tailored solutions designed for your unique Oil & Gas pipeline needs.

Read More
12 inch and 20 inch universal expansion joints delivered for oil and gas company in west africa

Delivering 12 inch and 20 inch Universal Expansion Joints for the Oil and Gas Company in West Africa

Client Overview

Our client, a major player in oil and petroleum production and storage facilities in West Africa, required reliable expansion joints for a terminal storage tank refurbishment project. The project included (1-off) 12 inch and (2-off) 20-inch universal expansion joints for their critical pipeline system. The project involved accommodating movement, pressure, and thermal expansion in challenging operational conditions. With a focus on durability and corrosion resistance, the client turned to Bellows Systems for a tailored solution.

Project Details

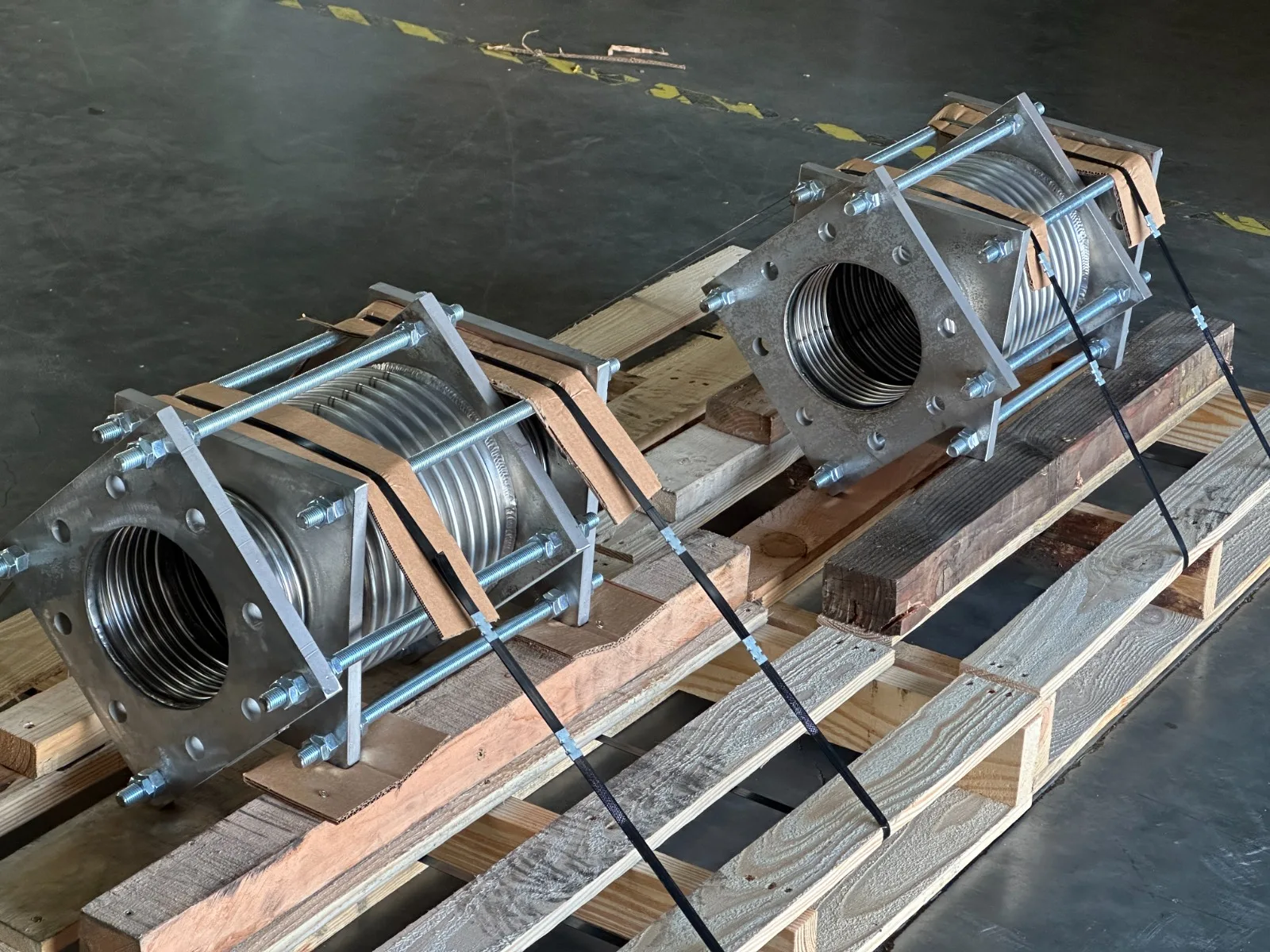

Bellows Systems designed, manufactured, and delivered 12-inch and 20-inch universal expansion joints for the client. These expansion joints were constructed from Alloy 825, a material known for its exceptional corrosion resistance, strength, and durability in demanding environments such as those encountered in the oil and petroleum industries.

The expansion joints also featured ,

  • 150# RFSO flanges , both welded
  • Bellows Liner – Incoloy 825 ( Alloy 825)
  • Bellows Cover – SS304 (ASTM A240)
  • Control Rods

The delivered expansion joints were designed to handle:

  • Axial, lateral, and angular movements to ensure flexibility and reduce stress on the pipeline system.
  • High-pressure and high-temperature environments, typical in oil and petroleum pipelines.
  • Corrosive conditions, leveraging the superior material properties of Alloy 825 to ensure long service life.

Why Inconel 825?

Inconel 825 was specifically chosen for this project due to its excellent resistance to corrosion in harsh environments, particularly those involving acidic and oxidizing agents often present in the oil and gas industry. Its robust properties make it ideal for ensuring pipeline safety and efficiency over time.

Key Benefits Delivered

  1. Enhanced Durability: The use of Inconel 825 ensures the expansion joints withstand corrosive elements, extending their operational life.
  2. Operational Reliability: Designed to handle complex movements and extreme conditions, the expansion joints optimize pipeline performance.
  3. Custom Engineering: Bellows Systems provided a tailored solution to meet the client’s unique operational requirements, ensuring seamless integration into the pipeline system.

Client Outcome

The same client previously successfully integrated universal expansion joints into their pipeline system, enhancing both the safety and efficiency of their operations. Impressed by the product quality and engineering expertise, the client awarded repeat order to Bellows Systems for delivering a reliable solution on time and meeting their specific needs.

About Bellows Systems

Bellows Systems has been a trusted partner in delivering high-performance metal bellows and expansion joints for over four decades. Our expertise in custom engineering and advanced material selection ensures that we consistently provide solutions that meet the demanding requirements of industries worldwide.

If you’re looking for a trusted partner for high-performance expansion joints, contact Bellows Systems today!

Read More
High Temperature piping Expansion Joints

Hinged and Gimbaled piping Expansion Joints for a Natural Gas Fired Heater

High-Pressure High-Temperature piping Expansion Joints for a Natural Fired Heater at a US AFB.

  • Design pressure of 1,300 Psi and design temperature of 1,250 F.

  • Hydrotest at 1,900 Psi

Bellows Systems designed and manufactured one hinged and two gimbal expansion joints for a recent project. The gimbal type expansion joints included one with an external cover and removable insulation.
The bellows materials included Inconel 718 alloy construction with integral root rings and collars. Hinge and Gimbal structural components included 304 SS and 347H SS.

Hinged bellows were designed to be capable of 7 degrees of angular rotation at design temperature and pressure.

Bellows Systems is your go-to source for the standard to the most challenging bellows and expansion joint applications.
